XR2™ Bicycle Rack
Share
Architect and Construction Files - Click to Download
1. How to choose your bike rack
Manufatured in the USA
2. Select your mounting option
SURFACE MOUNT
IN GROUND
RAIL MOUNT
3. Select your finish
POWDER COAT
Our most popular finish is Powder Coated, we use a high quality TGIC Polyester Powder Coating with eight standard colors available at no extra charge. Want a color you don’t see here? For an added fee we can access every color you could imagine. Looking for added protection? We offer an Anti-Graffiti top coat (extra fee) which resists sharpie and most aerosol paints allowing maintenance to be performed with dish soap and water
GALVANIZED
Hot-dip Galvanized (G) racks will have the highest durability.
STAINLESS STEEL
Looking for the highest longevity? Stainless Steel (S) Racks will literally last beyond a lifetime requiring the least amount of labor to maintain
2. Select your color
- BLACK
- PEARL
- WHITE
- SILVER GRAY
GRAPHITE - MESA TAN
- FIRE ENGINE RED
- EMERALD GREEN
- CELESTIAL BLUE
5. Plan accordingly
When planning for your bike rack spacing, make sure you account for the bike! Bikes are 24″W x 72″L x 48″H and are often times unaccounted for. If you are in need of layout assistance, CONTACT US TODAY!

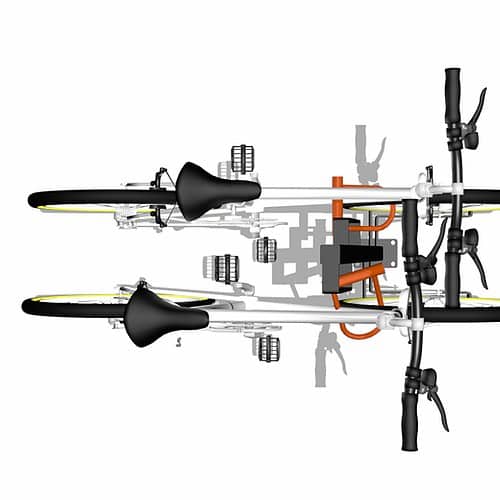

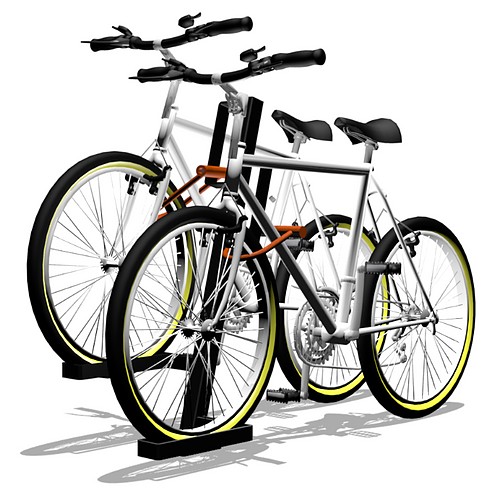

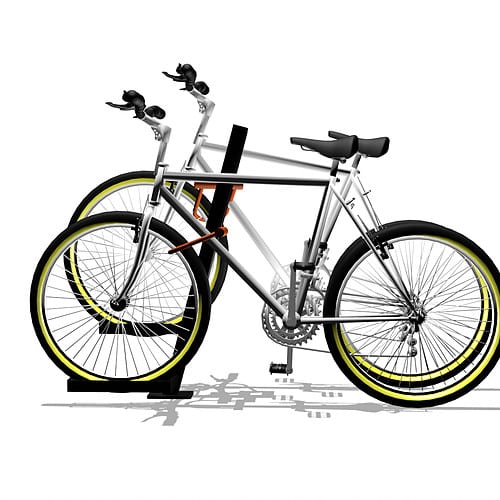

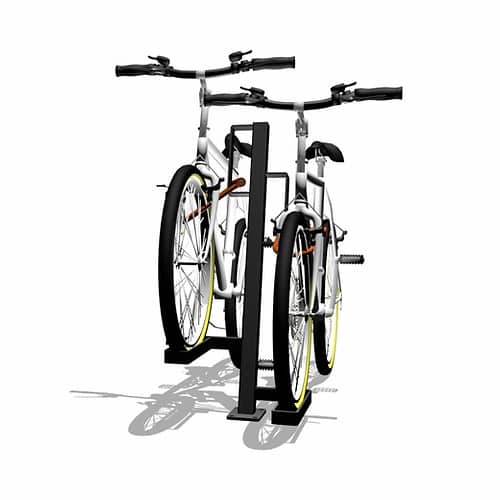

The XR2™ Bike Rack is one of the country’s highest density campus bike racks on the market. The elevated wheel trough setting prevents pedal to pedal conflict or pedal to chain conflict while the environmental friendly TEC72™ finish protects against metal to metal contact. We also offer the unit in a standard powder coat. This unique design securely holds two bicycles in an upright position, while allowing user to secure both their tire and frame to the rack. The theft resistant metal square tubing features two solid steel locking loops that provide three critical U-lock points – the frame, front wheel and the bike rack. The base is fit with two elevated wheel troughs, which hold the front or rear wheels firmly in place and keep the bikes in an organizes upright position. Because the wheel troughs are set at different heights, handlebars won’t interfere with one other. The XR2™ Bike Rack is in a class of its own, preventing tipping and slipping, metal to metal contact, and increasing security
-
MATERIALS
- ASTM A53 2” Square Tube
- ASTM A36 Steel Plate
- 3/8:” Case Hardened Steel Locking Loop
- 3/8” Case Hardened Wheel Trough
FOOTPRINT
- Without Bikes: 15.5″ W x 38″ H x 18″ L
- With Bikes: 36″ W x ”38 H x 72″ L
MOUNTING
- Surface Mount
- In Ground
- Free Standing
- Rail Mount
FINISH
- Powder Coat
- Galvanized
WARRANTY
- 5 Year Manufacturer Warranty
Distance between racks:
- Center to center – Minimum 32” Recommended 38 1/2”
- Perpendicular – Minimum 44 1/2” diagonal
Front of rack to wall setback:
- Wall to center of rack – Minimum 20”
- 30° Perpendicular to center of rack – Minimum 18”
Racks parallel to a side wall:
- Minimum 30” from center base plate
Street setbacks Parallel to street:
- Racks parallel to curb – minimum: 45”
Additional information
| Color | Black, Blue, Celestial Blue, Emerald Green, Fire Engine Red, Graphite, Green, Grey, Mesa Tan, Pearl White, Red, Silver Gray |
|---|---|
| Anchor Kit | Anchor Kit, No Anchor Kit |
| Material | Galvanized (Added Cost), Powder Coat (Standard), Stainless Steel (Added Cost) |
| Mounting | In Ground Mount, Surface Mount |
| Installation | No, Yes |
